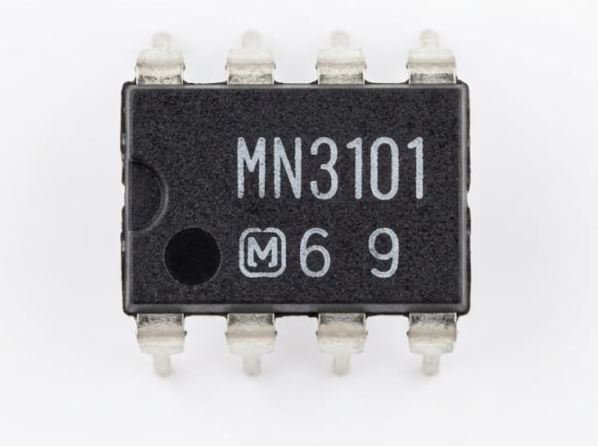

A160 Panasonic MN3101 BBD Clock Generator Driver IC, CMOS Low Voltage, 8-Pin DIP for Analog Audio Effects

The MN3101 is a high-stability clock generator specifically designed to drive Bucket Brigade Devices (BBDs) such as the MN3007 or MN3207. It provides the necessary two-phase clock signals required to transfer analog charges through the BBD stages. This chip is a "holy grail" component for guitar pedal builders and vintage synthesizer restorers looking to achieve authentic analog delay, chorus, and flanger sounds.

Key Technical Specifications

• Function: Clock Generator and Driver for BBDs

• Clock Outputs: Two-phase (CP1, CP2) for precise BBD timing

• Operating Voltage: Low voltage operation (typically 4V to 10V)

• Internal Circuitry: Includes an integrated oscillator and VGG voltage generator

• Package Type: 8-Pin PDIP (Plastic Dual In-Line Package)

• Manufacturer: Panasonic / Matsushita (Original Vintage Stock)

Applications

• Guitar Effects Pedals: Heart of classic analog Chorus, Flanger, and Echo pedals.

• Vintage Synthesizers: Used in modulation sections for warm, organic textures.

• Analog Audio Processing: Creating time-delay effects without digital conversion.

• Repair & Restoration: Essential replacement part for boutique and vintage gear from the 1970s and 80s.

Why Choose the MN3101?

• Optimized Performance: Specifically engineered to provide the high-capacitance drive required by BBD clock inputs.

• Integrated Design: The built-in $V_{GG}$ generator simplifies the power supply requirements for the paired BBD chip.

• Authentic Tone: Unlike modern digital emulations, the MN3101 allows for the unique "warmth" and "clock noise" characteristic of true analog delay circuits.
