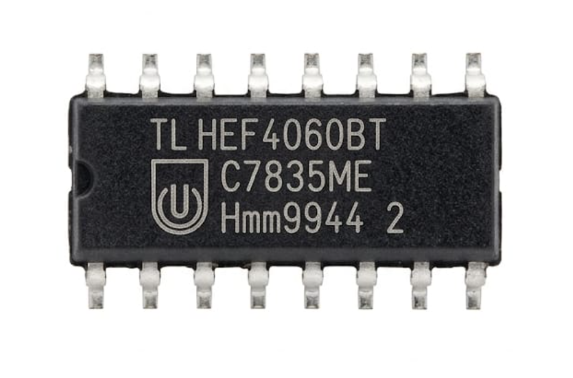

A146 HEF4060BT 14-Stage Binary Counter & Oscillator IC, CMOS Logic, 16-Pin SOIC Surface Mount

The HEF4060BT is a versatile CMOS integrated circuit that combines an internal oscillator with a 14-stage binary counter. It is designed to take an input frequency (generated via an external RC or crystal network) and divide it down through 14 stages, providing multiple frequency outputs. This makes it a go-to component for creating clocks, timers, and frequency dividers in a compact SOIC-16 surface-mount package.

Key Technical Specifications

• Function: 14-Stage Ripple-Carry Binary Counter / Divider

• Integrated Oscillator: Built-in oscillator stage (requires external RC or Crystal)

• Technology: CMOS (HE4000B Family)

• Package Type: SOIC-16 (Small Outline IC)

• Supply Voltage Range: 3V to 15V

• Outputs: 10 buffered outputs (Q3 to Q9 and Q11 to Q13)

• Reset: Common master reset (MR) to clear all stages

Applications

• Precision Timers: Generating long-period time delays (seconds to hours).

• Frequency Division: Breaking down high-frequency signals into usable lower frequencies.

• Clock Generation: Serving as the heart of timekeeping circuits in digital clocks.

• Control Systems: Used in industrial automation for sequential timing tasks.

• Pulse Generation: Creating stable square wave pulses for signal processing.

Why Choose the HEF4060BT?

• High Efficiency: Low power consumption typical of the 4000-series CMOS logic.

• Simplified Design: Eliminates the need for a separate oscillator IC, reducing component count on the PCB.

• Fully Synchronized: Excellent noise immunity and stable operation across its entire voltage range.
