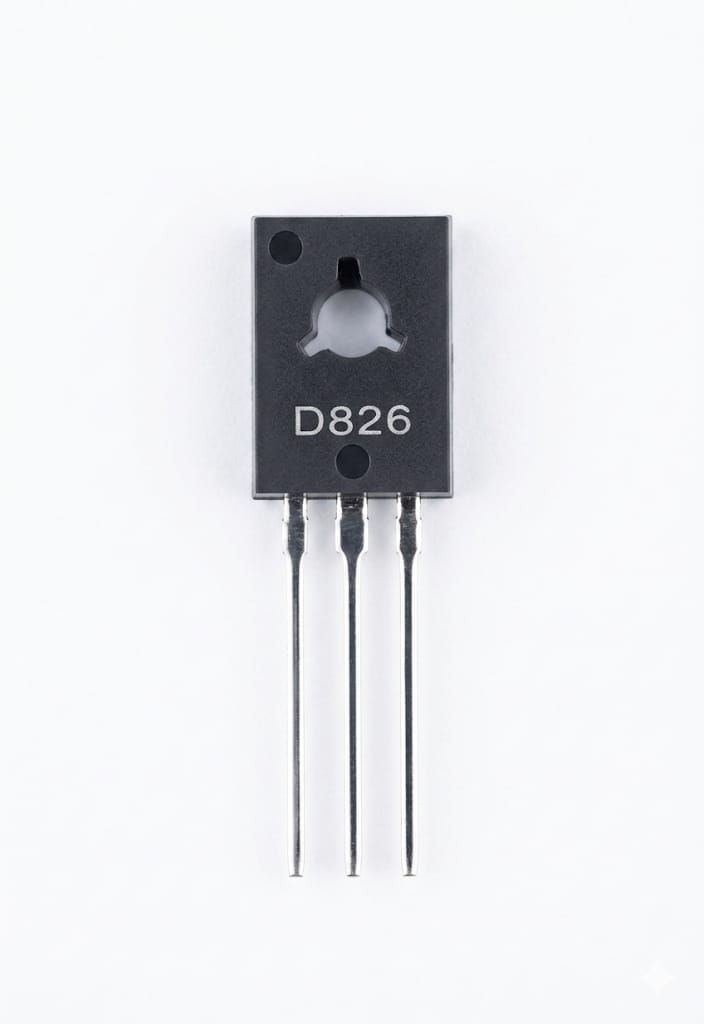

C59 2SD826 (D826) NPN Power Transistor – High Current
C59 2SD826 (D826) NPN Power Transistor – High Current
27 in stock
Couldn't load pickup availability
Product Details & Features
Product Details & Features
Product Description
The 2SD826 is a high-performance NPN power transistor designed for power switching, voltage regulation, and audio amplifier output stages. Its TO-126 plastic mold package is specifically designed for applications that require moderate power dissipation; the integrated mounting hole allows it to be easily bolted to a metal heatsink to manage thermal output during heavy operation.
Key Features
-
High Current Capacity: Designed to handle significant collector currents, making it suitable for driving motors or relays.
-
Low Saturation Voltage: Provides efficient operation with minimal power loss during switching.
-
Heatsink Compatible: The TO-126 package ensures easy thermal management for prolonged reliability.
-
Versatile Application: Ideal for DC-DC converters, power supplies, and general-purpose high-current switching.
Technical Specifications
| Feature | Specification |
|---|---|
| Transistor Polarity | NPN |
| Collector-Emitter Voltage (VCEO) | 32V - 60V (Varies by manufacturer) |
| Collector Current (IC) | 2A to 5A (High current series) |
| Total Power Dissipation (PC) | ~1W (Ambient) / Up to 10W (with Heatsink) |
| Package Type | TO-126 |
Pinout Configuration
For the TO-126 package, when looking at the side with the part number (the front) with the leads pointing downwards, the standard pinout is:
-
Emitter (E): Left lead
-
Collector (C): Center lead
-
Base (B): Right lead
