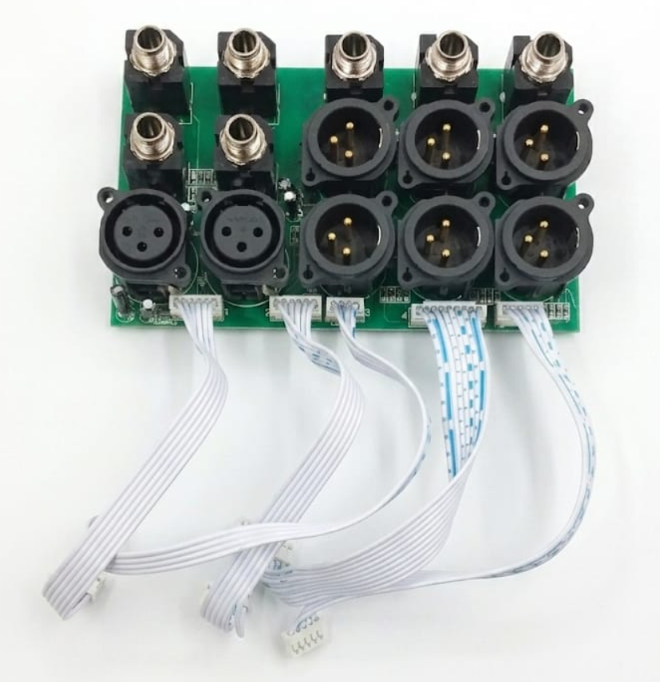

MIX-16 Master Output Connector PCB - Replacement Audio Terminal Board

The MIX-16 Output Terminal Board is the specialized hardware interface for the 16-channel version of the MIX Series consoles. This PCB serves as the physical bridge between the internal processing brain and your external sound system. It is the factory-standard replacement part for consoles with broken output pins, loose jacks, or signal grounding issues at the master output stage.

Key Features

• Optimized for MIX-16: Designed to fit the specific rear-panel port spacing and internal wiring of the 16-channel mainframe.

• Professional Balanced I/O: Features 6 gold-plated XLR male pins and 4 high-performance 1/4" (6.35mm) TRS jack footprints for Main L/R and Group outputs.

• Auxiliary Routing: Includes dedicated 1/4" TRS output terminals for monitoring and external effects sends.

• Factory-Fitted Ribbon Cables: Comes pre-equipped with high-quality white ribbon cables and JST-style connectors for a fast, "no-solder" internal connection to the main logic board.

• Robust Signal Shielding: Built on a thick, industrial-grade green PCB with reinforced mounting points to handle heavy XLR cable strain.

• Integrated Mic/Line Logic: Includes 2 female XLR/Combo inputs for talkback or additional stereo returns directly at the output stage.

Technical Specifications
