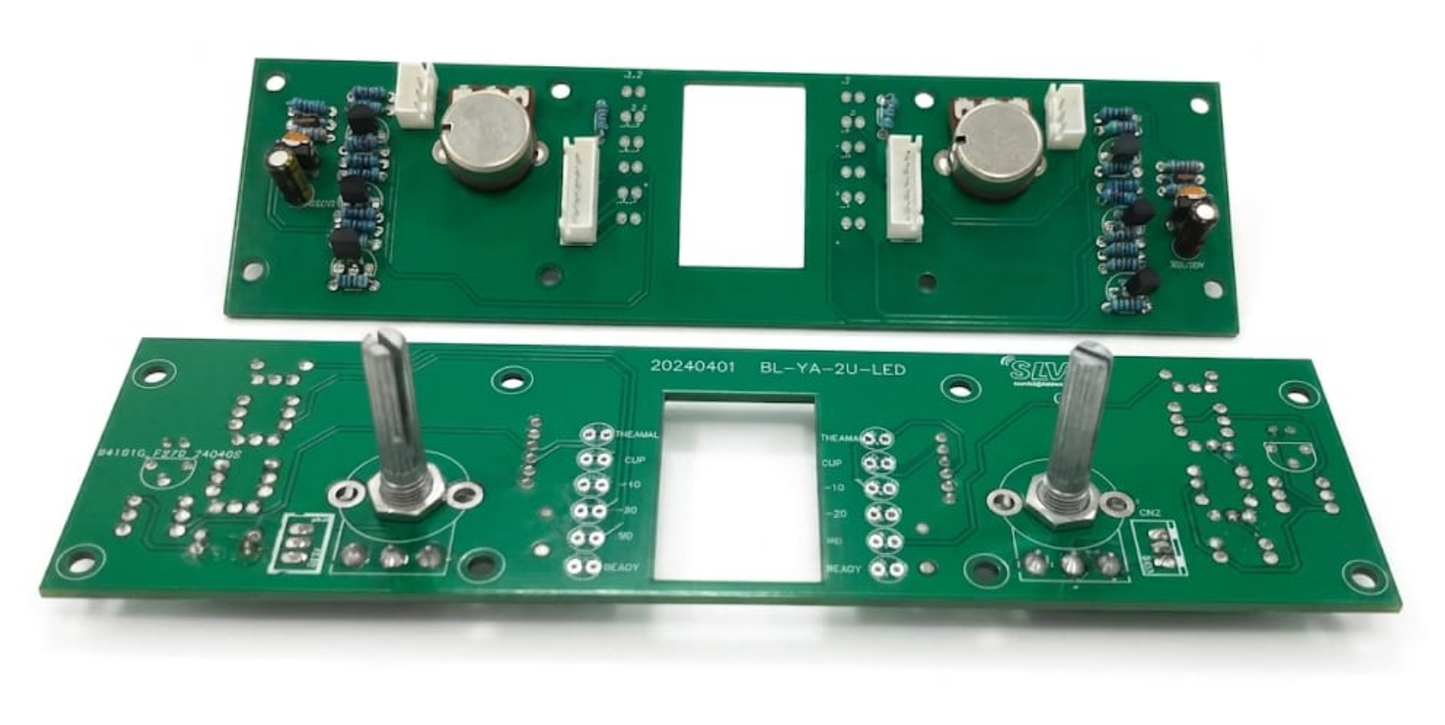

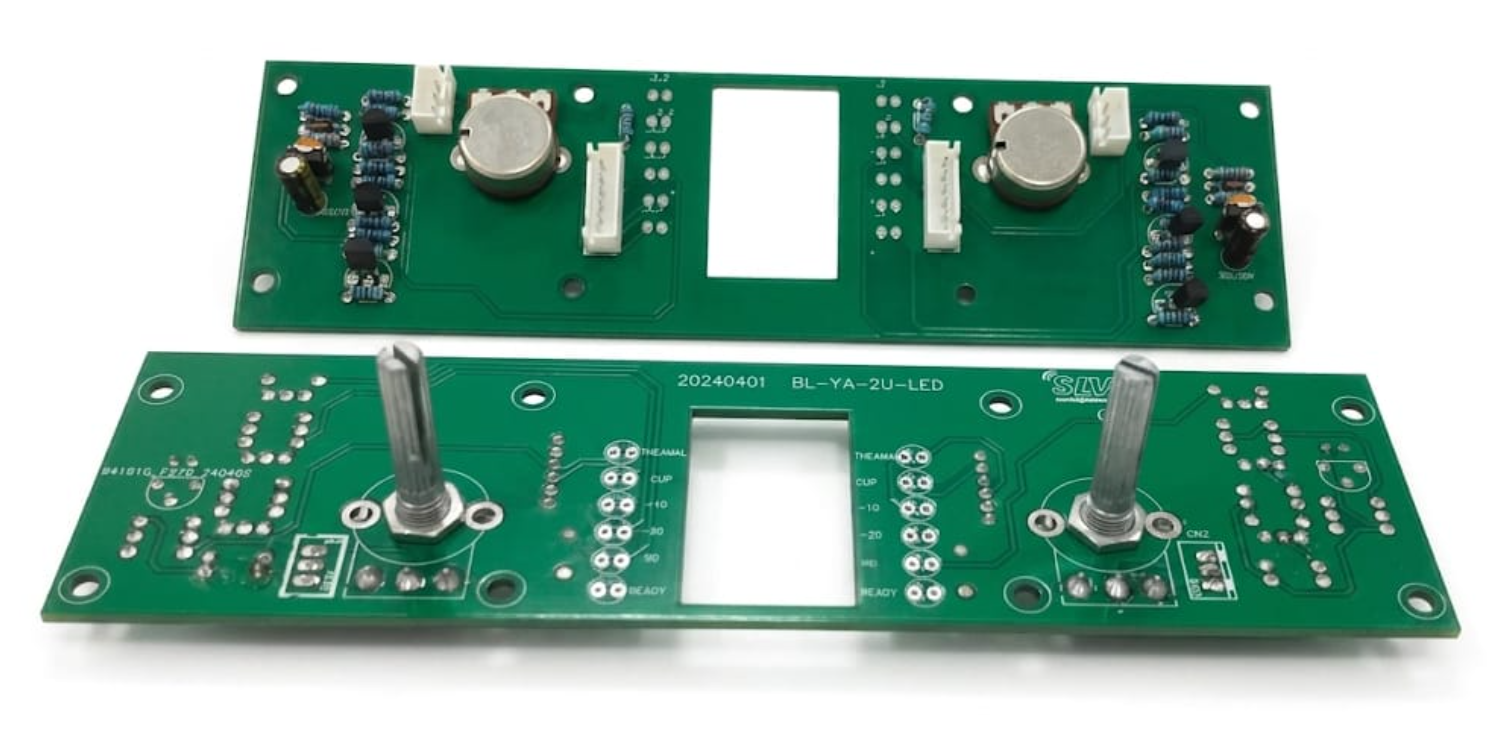

SLV Black Series Front Panel Board – BL7 / BL9 Volume & LED PCB ( VERSION 1 )

The SLV BL-YA-2U-LED is the standard front-end control interface designed for the 2U chassis of the BL7 and BL9 professional amplifiers. This assembly consists of a main control board and a secondary display board, allowing for independent dual-channel gain adjustment and comprehensive visual feedback on the amplifier's operating status. It is engineered to maintain signal integrity while providing the rugged reliability required for touring and installation audio.

Key Features & Build Quality

• Precision Control: Features dual high-technology encoder-style volume knobs for smooth and accurate independent adjustment of Channel A and Channel B.

• Real-Time Monitoring: Integrated LED diagnostic array provides immediate feedback on critical system parameters:

  • Ready: Indicates the amplifier is powered on and the protection circuits are clear.

  • Signal: Detects active audio input at the channel.

  • Level Metering: Includes -20dB and -10dB indicators for monitoring signal strength.

  • Clip: Warns of signal distortion or peak levels.

  • Thermal: Alerts the user to potential overheating conditions.

• Industrial Build: Manufactured with a 20240401 revision green PCB, optimized for standard 2U rack-mount heights.

• Low-Noise Circuitry: Designed to prevent interference during volume manipulation, ensuring a clean signal path to the power stages.

Technical Specifications

• Model Compatibility: SLV Black Series BL7 and BL9.

• PCB Marking: 20240401 BL-YA-2U-LED.

• Form Factor: Standard 2U Rackmount Height.

• Monitoring: 6-segment LED status display per channel.

• Connection: Multi-pin header interface (CN1/CN2) for internal power and signal distribution.

Applications

• BL-Series Component Repair: Ideal for replacing faulty volume potentiometers or damaged LED indicators in the BL7 and BL9 models.

• Professional Maintenance: Serves as a direct factory-spec spare part for audio rental houses and touring technicians.

• Interface Restoration: Restores accurate signal metering and smooth gain control to aging professional rack equipment.

Installation Note: Before securing the boards, verify that the LED indicators and potentiometer shafts are perfectly aligned with the front panel openings of the BL7 or BL9 chassis. Ensure all internal ribbon cables are seated firmly in the white header connectors to avoid signal loss or false protection triggers.
