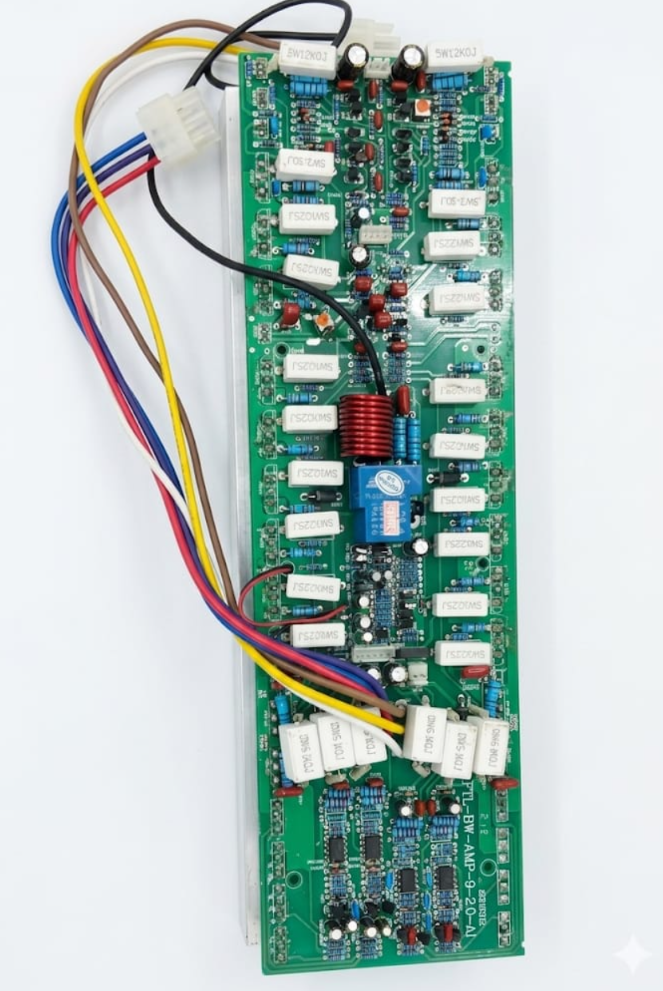

SLV White Series 7002 Power Amp Module – 7000W Class H Drive Assembly

The SLV White Series 7002 Module is a tour-grade audio power assembly designed for extreme performance and sustained high-output stability. This module utilizes an advanced Class H circuit topology that intelligently manages voltage rails to maximize efficiency. By providing power only as the signal demands, it significantly reduces heat buildup, allowing the 20+ transistor array to operate reliably even when driving difficult 2-ohm loads.

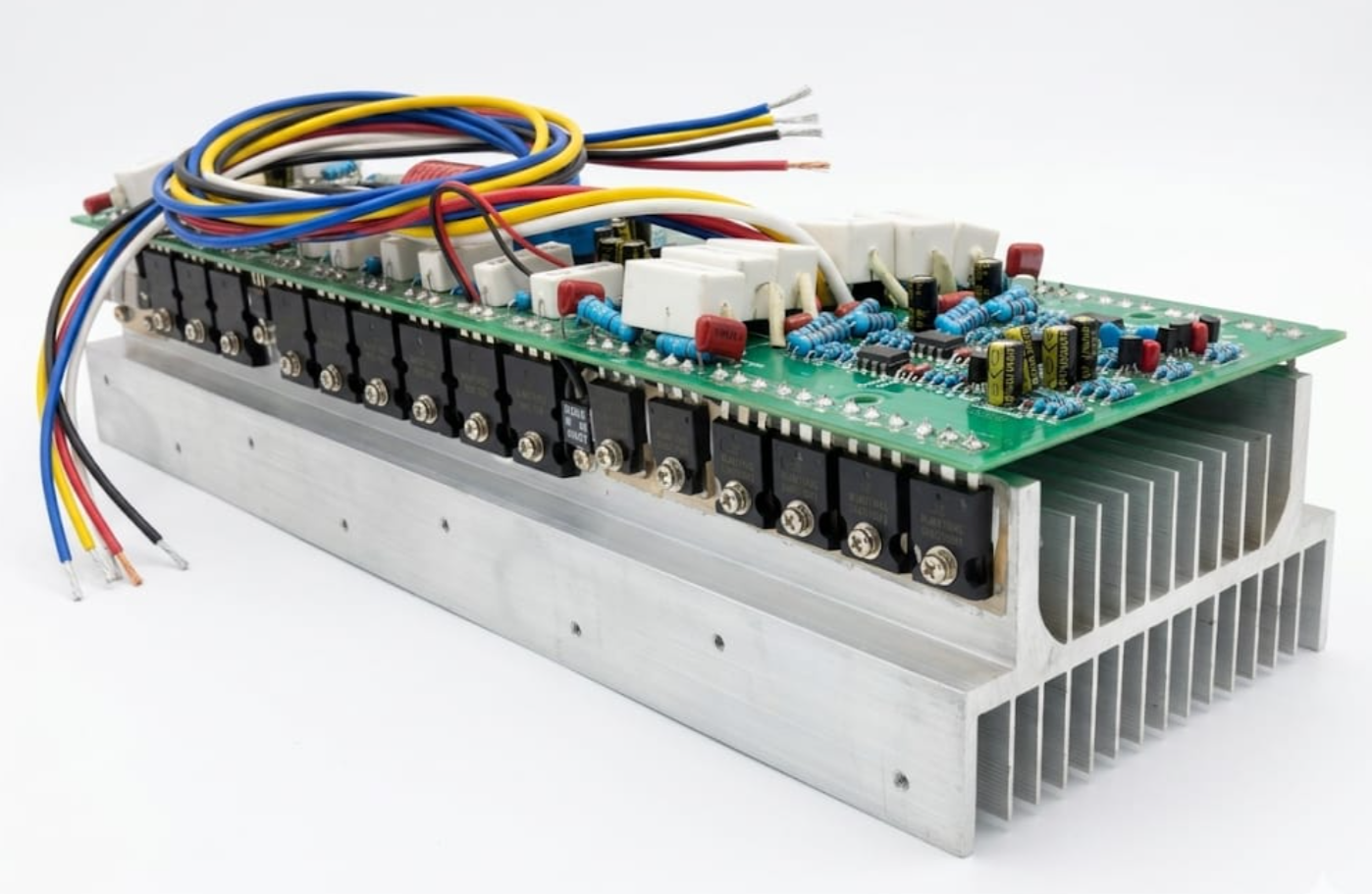

This complete assembly comes pre-mounted to a massive, custom-extruded aluminum heatsink, ensuring that the thermal energy generated by its 3500W per channel output is dissipated rapidly.

Key Features & Build Quality

• Massive Transistor Bank: Features a high-density row of premium power transistors (compatible with high-spec Toshiba semiconductors) for unrivaled current delivery.

• Integrated Thermal Management: Factory-mounted to a high-surface-area aluminum heatsink for immediate heat transfer and long-term durability.

• Professional Wiring Harness: Includes high-gauge, color-coded silicone wiring (Blue, Yellow, Red, White, Black) designed to handle the high-current demands of the 7002 chassis.

• Component Precision: Built with high-wattage non-inductive ceramic resistors and low-noise operational amplifiers to maintain a THD of <0.03%.

• Comprehensive Protection: Features onboard circuitry for soft-start, DC offset protection, and progressive volume limiting to safeguard your speaker drivers.

Technical Specifications (7002 Profile)

• Power Output (Stereo): 2000W (8Ω) | 2800W (4Ω) | 3500W (2Ω)

• Power Output (Bridge): 5600W (8Ω) | 7000W (4Ω)

• Frequency Response: $20\text{Hz} - 20\text{kHz}$

• Damping Factor: 1000 (Superior control over heavy-duty 18" and 21" subwoofer cones)

• Slew Rate: 42V/us

• Signal-to-Noise Ratio: $>90\text{dB}$

• Input Sensitivity: Switchable 0.775V / 1.0V / 1.4V

Applications

• Flagship Series Repair: The primary replacement drive stage for SLV White Series 7002 rack amplifiers.

• High-SPL Sound Reinforcement: Ideal for stadium-scale subwoofer arrays and high-power touring systems.

• Industrial Audio Installations: Suitable for large-scale venues, arenas, and outdoor festival sound stages where power failure is not an option.
